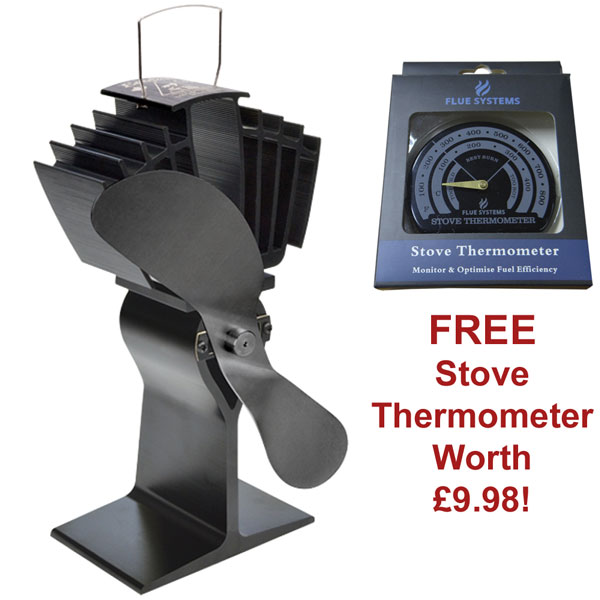

Ecofan 812 AirMax Wood Stove Fan - Black and Black

£140.40 (Including VAT at 20%)

Availability: Useually dispatched next working day.

The Ecofan is a heat powered stove fan designed to circulate the air created by a wood or gas stove. The Ecofan has a thermoelectric module which acts as a small generator to power the fan's motor.

For more than a decade now, wood stove owners have been luxuriating in the heat and comfort generated by their Ecofans.

Increases stove's efficiency
Circulates warm air over large areas
Generates its own energy
Fan speed automatically varies with temperature
Ultra quiet operation

Benefits
18% cost savings and reduced emissions from burning less fuel
Increases comfort more quickly
Ready to use out of the box
No loud blower noise

Specifications
Air Flow:- Up to 175 CFM
Temperature Range:- 85°C - 345°C

Dimensions:- Base 121x82mm (4.75 inch x 3.25 inch), Height 248mm (9.75 inch) from base to top of the blade, excluding handle. Blade diameter 230mm (9 inch).

Positioning of Stove Fans
Please be aware that stove fans need to sit at the back of the stove, to the side of the stove pipe. Do not sit any stove fan directly in front of the stove pipe, as the temperature will be too great, and could damage the fan motor.

Brochure
Ecofan Leaflet

Description
Description

The Ecofan is a heat powered stove fan designed to circulate the air created by a wood or gas stove. The Ecofan has a thermoelectric module which acts as a small generator to power the fan's motor.

For more than a decade now, wood stove owners have been luxuriating in the heat and comfort generated by their Ecofans.

Increases stove's efficiency
Circulates warm air over large areas
Generates its own energy
Fan speed automatically varies with temperature
Ultra quiet operation

Benefits
18% cost savings and reduced emissions from burning less fuel
Increases comfort more quickly
Ready to use out of the box
No loud blower noise

Specifications
Air Flow:- Up to 175 CFM
Temperature Range:- 85°C - 345°C

Dimensions:- Base 121x82mm (4.75 inch x 3.25 inch), Height 248mm (9.75 inch) from base to top of the blade, excluding handle. Blade diameter 230mm (9 inch).

Positioning of Stove Fans
Please be aware that stove fans need to sit at the back of the stove, to the side of the stove pipe. Do not sit any stove fan directly in front of the stove pipe, as the temperature will be too great, and could damage the fan motor.

Brochure
Ecofan Leaflet

Features
Features

Ecofan Increases Stove Efficiency
Warm air is circulated directly into the living area rather than having most of the stoves heat rise immediately to the ceiling, thereby increasing the heating effectiveness of the stove.

Ecofan Unique Blade Design
The unique anodised black coloured blade has been specifically designed to deliver a very broad cross section of gentle air movement instead of a small cone of concentrated air.

Ecofan Easy Operation
Ecofans start automatically and adjust speed with the stove's temperature. As the stove heats up the Ecofan runs faster to move more air into the room. As the stove burns down and cools, the Ecofan automatically slows down and stops.

Ecofan Costs Nothing to Operate
Because the Ecofan uses only the heat from the stove, it is the most economical way to effectively circulate the warm air. It does not plug in, uses no batteries, and can be used where there is no electricity.

Warranty
Warranty

All Ecofans are warranted to be free from any manufacturer’s defects in material and workmanship for a period of 2 years from the date of purchase.

Should an Ecofan become defective or fail to operate under normal conditions within this 2 year period, you must in the first instance email ecofans@calfire.com advising which model you have; the serial number of your unit (found on the underside of the top casting); when and from where you purchased the item and details of the fault you are experiencing.

If subsequently instructed to return the item then this should be sent, with a copy of the warranty notification email and a copy of the original invoice or cash register slip, to the UK Ecofan distributor Calfire Spareline Ltd at the following address:

Calfire Spareline Ltd
Gledrid
Chirk
Wrexham
LL14 5DG

Please note that you must email ecofans@calfire.com before returning any Ecofan to them.

Refurbishment
Refurbishment

Should the unit fail after the warranty period a full refurbishment service is available. Send your fan to the UK distributors Calfire at the following address:

Calfire Spareline Ltd.,
Gledrid.
Chirk.
Wrexham
LL14 5DG.

Once received Calfire will produce a refurbishment report and quotation and forward this to you by email or post. If you are happy with the quotation you will be asked to provide your payment details and your Ecofan will then be refurbished. The fan will be tested prior to being returned.

Occasionally units that have been subjected to extreme heat will be beyond repair.

Should you decide not to proceed with the repair, or the fan is beyond repair, a small postage charge will be requested to pay for the fans return or the fan will be disposed of.

Refurbished units are covered for a full 1 year from the date you receive them back.

The refurbished unit warranty conditions are the same as for new units.

Reviews
Reviews


Customer Reviews

  Glad I bought this!  So glad I bought this as it has made a big difference in our large sitting room heated by a woodburner. Heat circulates round the room so much less of hot and cold zones.   (02/11/2012) -


  Ecofan 812  Arrived very quickly. Although I had looked at dimensions I was slightly surprised at how big it is. It only just fits on our Stovax 4.7kW fire. It is working well and although I can give no figures I definitely think it has made a difference to the heat distribution and the house feels warmer.   (02/11/2012) Julie - Scotland


  Fan now circulates warm air throughout house  Came securely packaged and on first inspection appeared to be well made. Sits unobtrusively on our Yotul stove and operates with very little noise. We can now circulate warm air throughout the house, whereas before with our lounge 'cathedral' ceiling all the warm air concentrated above.   (02/11/2012) Rodney Jones - Aberdeenshire Scotland


  Excellent!  The cold end of our lounge is now warm,and no one minds sitting there,it does exactly what it promises!   (02/11/2012) -


    Great product has improved the heat distribution . Works automatically when the stove heats up.   (05/11/2012) Peter Lowe - Horncastle


  Well worth buying  Makes a subtle but noticeable difference which all members of the family have noticed.   (11/12/2012) Barbara - West Midlands


    Absolutely excellent and distributes the heat thro to our next room most efficiently.   (11/01/2013) Nick Larkin - Gloucestershire


  great product  prompt delivery, well packaged, no assembly, works well and spreads the heat to the whole room. silent operation much appreciated.   (12/01/2013) Katherine Paterson - Spain


  brilliant wouldn't be without it  I bought this before the woodburner was fitted so we could et the space needed to fit it. The heat is pushed out really well- our lounge is 23ftx12ft and we dont have a cold spot even though the woodburner is not centrally placed. Silent running. Like the fact it needs no power supply.   (13/01/2013) -


  An Excellent Product.  Does exactly what it says ... truly amazing, distributes the heat from the wood burner enclosure beautifully. Great company to buy from as well .. all in all a great purchase.   (13/02/2013) Annie - Brockweir


Quick Look
Height248 mm to top of blade excluding handle
Base121 mm x 82 mm
Blade Diameter230 mm
Operating Temperature85-345 °C
Warranty2 Years (see description)
